6205ZZ Industrial Grade Deep Groove Ball Bearing for Reliable Medium-Load Machinery

The 6205ZZ deep groove ball bearing is a standard-size industrial bearing designed for dependable performance in electric motors, pumps, fans, conveyors, agricultural equipment, gearboxes, and general mechanical systems. With a 25 mm bore, 52 mm outside diameter, and 15 mm width, it provides a practical balance between compact installation dimensions, medium radial-load capacity, rotational stability, and long-term operating reliability.

As a double-shielded bearing, the 6205ZZ uses metal shields on both sides to help limit the entry of dust, dirt, and airborne contaminants while helping retain the factory-applied lubricant. Its shielded structure makes it especially suitable for enclosed machinery and applications where routine relubrication is difficult or where protection from common industrial contaminants is important.

Manufactured from high-grade GCr15 bearing steel, the bearing is precision-ground to support smooth rotation, low friction, reduced operating noise, and consistent dimensional accuracy. The combination of carefully selected material, controlled manufacturing processes, shield protection, and inspection procedures gives the 6205ZZ a useful advantage over basic, poorly controlled alternatives.

This article explains the bearing’s construction, specifications, application value, manufacturing strengths, installation considerations, maintenance requirements, and selection advantages for original equipment manufacturers, distributors, maintenance departments, and industrial users.

6205ZZ Industrial Grade Ball Bearing for Motors, Pumps and Machinery

Product Overview

The 6205ZZ belongs to the 6200 series of deep groove ball bearings. This series is widely used because its cross-section is relatively compact while still providing practical radial-load capacity and the ability to accommodate limited axial loads in both directions. The internal raceway geometry supports continuous rotation and makes the bearing suitable for many general-purpose mechanical assemblies.

The 6205 designation identifies the basic bearing size and series, while the ZZ suffix indicates double metal shields. The shield arrangement is non-contacting or lightly protective rather than a full-contact sealing system. This allows the bearing to maintain relatively low rotational resistance while providing a barrier against ordinary dust and debris.

With a 25 mm bore, the 6205ZZ can be mounted on a wide range of standard shafts used in motors, pumps, blowers, fans, transmission systems, and industrial machinery. The 52 mm outside diameter provides a stable mounting surface inside a housing, while the 15 mm width helps keep the assembly compact.

The bearing is intended for applications requiring consistent performance rather than extreme specialty conditions. It is particularly appropriate when a machine needs a readily available standard bearing that can operate continuously under medium radial loading and moderate environmental exposure.

Key Specifications

Load ratings are engineering reference values and should not be treated as universal operating limits. Actual service life depends on load magnitude, speed, lubrication, temperature, alignment, contamination, mounting quality, vibration, and duty cycle. Engineers should evaluate the complete application before selecting a bearing for safety-critical or highly demanding equipment.

Deep Groove Design and Operating Characteristics

A deep groove ball bearing contains an inner ring, outer ring, rolling balls, cage, lubricant, and protective shields. The raceways in the inner and outer rings form deep, continuous grooves that guide the balls during rotation. This geometry distributes contact over a stable rolling path and allows the bearing to support primarily radial forces.

The deep groove structure also permits the bearing to accommodate limited axial forces in either direction. This is useful in motor and pump arrangements where the shaft may experience thrust generated by an impeller, fan, helical gear, belt tension, or thermal movement. However, when substantial axial force is expected, a dedicated angular-contact, thrust, or other specialized bearing may be more appropriate.

The 6205ZZ is a practical choice for machinery requiring dependable radial support and relatively low friction. Compared with plain bushings, the rolling-element design generally offers lower starting resistance and better suitability for continuous rotary motion. Compared with larger bearing types, its standard 52 mm outside diameter helps reduce housing size, material usage, and overall equipment dimensions.

Because the bearing is manufactured to a standard size, it can often be integrated into existing machine designs without modifying shaft or housing dimensions. Standardization also helps distributors and maintenance teams simplify inventory planning, replacement scheduling, and equipment repair.

Balanced Performance for General Industry

The 6205ZZ is not designed to be the largest or heaviest bearing in a machine. Its value comes from balanced performance. It offers enough load capacity for many medium-duty applications while remaining compact, commercially familiar, and easy to install. This balance is one reason the 6205 size is frequently selected for motors, pumps, fans, conveyors, and machinery assemblies.

Its double metal shields offer another practical advantage. Open bearings can allow contaminants to reach the raceways and may require a more carefully protected housing. Contact-sealed bearings provide stronger contamination resistance but can create additional friction and may be unsuitable for certain speed or temperature conditions. The ZZ design occupies a useful middle position for applications needing basic contamination protection with comparatively low running resistance.

The best choice depends on the environment. A 6205ZZ is appropriate for ordinary indoor industrial conditions, clean mechanical equipment, enclosed motors, and applications where exposure to heavy water spray is limited. In applications with direct water ingress, abrasive dust, chemical vapors, or pressure washing, a contact-sealed bearing or a specialized corrosion-resistant design may be preferable.

Material Advantage: GCr15 Bearing Steel

The 6205ZZ is manufactured from GCr15 bearing steel, a widely used high-carbon chromium steel for rolling-element bearings. The material is valued for its hardness, wear resistance, contact-fatigue performance, and ability to maintain a stable raceway under repeated rolling contact.

Rolling bearings experience concentrated contact stresses between the balls and raceways. Every revolution creates repeated loading cycles, and even a small defect in the raceway can influence vibration, noise, and service life. A suitable bearing steel, combined with correct heat treatment and precision finishing, helps the rings withstand these repeated stresses.

Material quality affects more than basic strength. Steel cleanliness, consistency, heat-treatment control, dimensional stability, and surface finish all contribute to the finished bearing’s performance. For this reason, a bearing manufacturer’s process discipline is as important as the nominal steel grade listed in the specification.

Steel Preparation and Component Production

Manufacturing begins with controlled raw material preparation. Bearing rings are produced from suitable steel stock and shaped through forming and machining operations. The purpose of these operations is to establish the basic ring geometry before heat treatment and final finishing.

The ring surfaces must be prepared carefully so that the raceways can later be hardened and ground to the required profile. Consistent material preparation helps reduce variation between production batches and supports more stable results during machining and inspection.

The balls must also meet strict requirements for roundness, surface quality, dimensional consistency, and hardness. Although the balls are small components, their accuracy has a direct influence on rotation smoothness, noise, friction, and load distribution.

Heat Treatment and Hardness Control

Heat treatment is a central stage in bearing manufacturing. The rings and rolling elements need sufficient hardness to resist indentation and wear, while also retaining the toughness required for repeated mechanical loading. Improper treatment can lead to premature fatigue, dimensional changes, or unstable performance.

Controlled heat treatment improves the working properties of GCr15 steel. After heating and cooling under defined conditions, the components are stabilized and prepared for precision grinding. The exact production parameters are determined by the manufacturer’s process requirements, equipment, component size, and quality-control system.

Effective heat-treatment control is one of the differences between a dependable industrial bearing and a low-cost product made without consistent process management. Even when two bearings share the same nominal dimensions, variation in material quality or heat treatment can produce different results in noise, durability, and service life.

Precision Grinding and Dimensional Accuracy

After heat treatment, the bearing rings require precision finishing. Grinding creates the final raceway geometry and improves the surface condition needed for smooth rolling contact. The inner diameter, outer diameter, width, shoulder locations, and raceway surfaces all require controlled machining and inspection.

Precision grinding reduces surface irregularities that could increase friction or cause vibration. A smooth and correctly formed raceway allows the balls to move along a predictable path. This contributes to quiet operation and helps distribute the load across the rolling elements rather than concentrating stress at isolated points.

Dimensional accuracy is equally important during installation. If the bore is too tight, the bearing may experience excessive internal stress after mounting. If it is too loose, the ring may creep on the shaft or inside the housing. Correct control of diameter, roundness, width, and tolerance supports stable fits and reduces the risk of premature failure.

For OEM customers, consistent dimensional accuracy helps simplify assembly-line design. For maintenance users, it improves interchangeability when replacing a worn bearing with another bearing of the same standard designation. It also reduces the need for unplanned fitting, shimming, or housing modification.

Noise and Vibration Considerations

Noise performance is influenced by many factors, including raceway finish, ball quality, cage condition, lubricant, internal clearance, shield alignment, and cleanliness during assembly. Precision manufacturing reduces the sources of unnecessary vibration and helps the 6205ZZ operate smoothly in motors, fans, and other rotating equipment.

Low noise is not only a comfort benefit. Excess vibration can indicate uneven load distribution, contamination, improper installation, shaft misalignment, or raceway damage. A bearing with stable manufacturing quality gives maintenance personnel a more reliable baseline for diagnosing other machine problems.

The 6205ZZ is therefore suitable for equipment where controlled running noise and smooth rotation matter, including electric motors, ventilation fans, household and commercial equipment, pumps, and light industrial transmission assemblies.

Double Metal Shields and Lubricant Protection

The ZZ suffix identifies two metal shields fitted on opposite sides of the bearing. These shields help limit the entry of dust, fibers, and other common airborne particles. They also help keep the internal lubricant in place during normal operation.

Lubrication is essential because it separates the balls from the raceways, reduces metal-to-metal contact, controls friction, and helps manage heat. When contaminants enter the bearing, they can mix with the lubricant and create abrasive particles. This may damage the raceways, increase vibration, and shorten service life. The shields provide a useful first level of protection against this type of contamination.

Metal shields generally create less seal drag than contact seals. This can help support efficient rotation, especially in applications where speed, low starting torque, or reduced energy loss is important. At the same time, users should understand that ZZ shields are not a guarantee against water pressure, immersion, or heavy contamination. The surrounding housing and operating environment remain important.

Comparison with Open and Contact-Sealed Bearings

The 6205ZZ is advantageous when the equipment requires a practical compromise between protection and rotational efficiency. It is especially useful in enclosed motor housings and machinery where direct water exposure is not expected.

Advantages Compared with Generic Alternatives

Industrial buyers often compare bearings that share the same nominal designation. A bearing marked 6205ZZ may appear interchangeable with another bearing of the same size, but important differences can exist in steel quality, heat treatment, grinding accuracy, cleanliness, shield installation, lubricant consistency, and final inspection.

The principal advantage of this product is process-based consistency. The bearing is made from GCr15 bearing steel and precision-ground to support reliable rotation. Its standard dimensions make it compatible with established equipment designs, while the double shields improve practical protection in ordinary industrial environments.

Stable Medium-Load Performance

The 14,000 N dynamic load rating and 7,850 N static load rating provide useful reference points for medium-load machinery. These values support applications in which the bearing must carry repeated radial forces without requiring a large or specialized bearing arrangement.

Compared with undersized alternatives, the 6205ZZ provides a stronger load-carrying platform for many motors, pumps, fans, and conveyors. Compared with oversized alternatives, it can help reduce housing dimensions and equipment weight. The correct comparison should always consider actual operating loads and required life rather than looking only at the bearing number.

Reduced Maintenance Requirements

The factory-lubricated, double-shielded construction helps reduce the need for frequent service in applications that remain within normal operating conditions. The shields help retain lubricant and limit ordinary contamination, allowing the bearing to operate as a maintenance-friendly component.

Reduced maintenance does not mean that the machine can be ignored. Operators should still monitor sound, vibration, temperature, shaft movement, and visible contamination. Early attention to abnormal conditions can prevent a small bearing issue from becoming a larger motor, pump, or gearbox failure.

Broad Application Compatibility

The 6205ZZ is used across several industries because it is not limited to a single machine type. It can support electric motor rotors, pump shafts, blower assemblies, conveyor rollers, agricultural equipment, gearboxes, and general-purpose transmission systems.

This application breadth benefits equipment manufacturers and distributors. A single standard bearing size can be used in multiple product families, simplifying purchasing and reducing the number of replacement parts that must be stocked. Maintenance departments can also benefit from standardized spare-parts planning.

Practical Cost and Availability Benefits

Standard deep groove bearings are generally easier to source than highly specialized designs. The familiar 6205 size is suitable for planned maintenance and emergency replacement programs. When the bearing is selected correctly, its standard dimensions can reduce downtime because replacement procedures are straightforward.

Cost should not be evaluated only by purchase price. A lower-priced bearing may become more expensive if it creates noise, requires frequent replacement, damages a shaft or housing, or causes unplanned equipment downtime. A consistent bearing with suitable material and manufacturing control can provide better total value over the operating life of the machinery.

Application Areas

Electric Motors

Electric motors commonly require bearings that can operate continuously with low friction and stable noise characteristics. The 6205ZZ is suitable for many medium-sized motor designs where the shaft and housing are specified for its 25 mm bore, 52 mm outside diameter, and 15 mm width.

In motor applications, correct internal clearance, shaft fit, housing fit, rotor balance, and alignment are important. Excessive belt tension, electrical current passage, shaft misalignment, or poor installation can damage a bearing even when the bearing itself is correctly manufactured.

Pumps

Pumps generate radial forces from impeller rotation, hydraulic loading, coupling conditions, and pipe alignment. The 6205ZZ can be used in pump assemblies requiring standard deep groove bearing support and moderate load capacity.

Users should assess whether the pump environment exposes the bearing to water, chemicals, or elevated temperatures. If the bearing is positioned close to a source of liquid leakage, the housing must provide adequate protection. In more severe wet environments, a different sealing arrangement or corrosion-resistant configuration may be required.

Fans and Blowers

Fans and blowers benefit from bearings that rotate smoothly and produce controlled noise. The precision-ground raceways and double metal shields of the 6205ZZ are useful for enclosed ventilation and air-moving equipment operating in ordinary industrial conditions.

Fan balance is particularly important. An unbalanced impeller can produce continuous vibration that places additional stress on the bearing. Correct shaft alignment and appropriate mounting are necessary to achieve the expected service life.

Conveyors and Material-Handling Equipment

Conveyor systems frequently operate for long periods and may be exposed to dust, vibration, and variable loads. The 6205ZZ can be used in rollers, drive assemblies, tensioning mechanisms, and supporting equipment when the load, speed, and contamination conditions are appropriate.

In dusty environments, the bearing should be installed inside a suitable housing or protected assembly. The metal shields help with ordinary contamination, but abrasive powder, heavy dust, and washdown conditions may require additional external sealing.

Agricultural Machinery

Agricultural equipment often combines rotating shafts, vibration, changing loads, and exposure to dust or plant material. The 6205ZZ may be suitable for protected mechanisms, fans, transmission components, and auxiliary assemblies.

Equipment designers should carefully review contamination protection. Soil, fertilizer, moisture, and plant residue can be more aggressive than ordinary indoor dust. The bearing should be selected together with the housing, external seals, lubricant, and maintenance schedule.

Gearboxes and General Machinery

The bearing can support shafts in gearboxes and mechanical transmission devices where radial loads are moderate and axial loads are limited. It may also be used in machine tools, electric tools, agricultural devices, material-handling units, and general industrial equipment.

Gearbox applications require attention to gear forces, shaft deflection, lubricant compatibility, operating temperature, and possible electrical or chemical exposure. The 6205ZZ should be used only when its shielded, pre-lubricated design matches the gearbox lubrication arrangement.

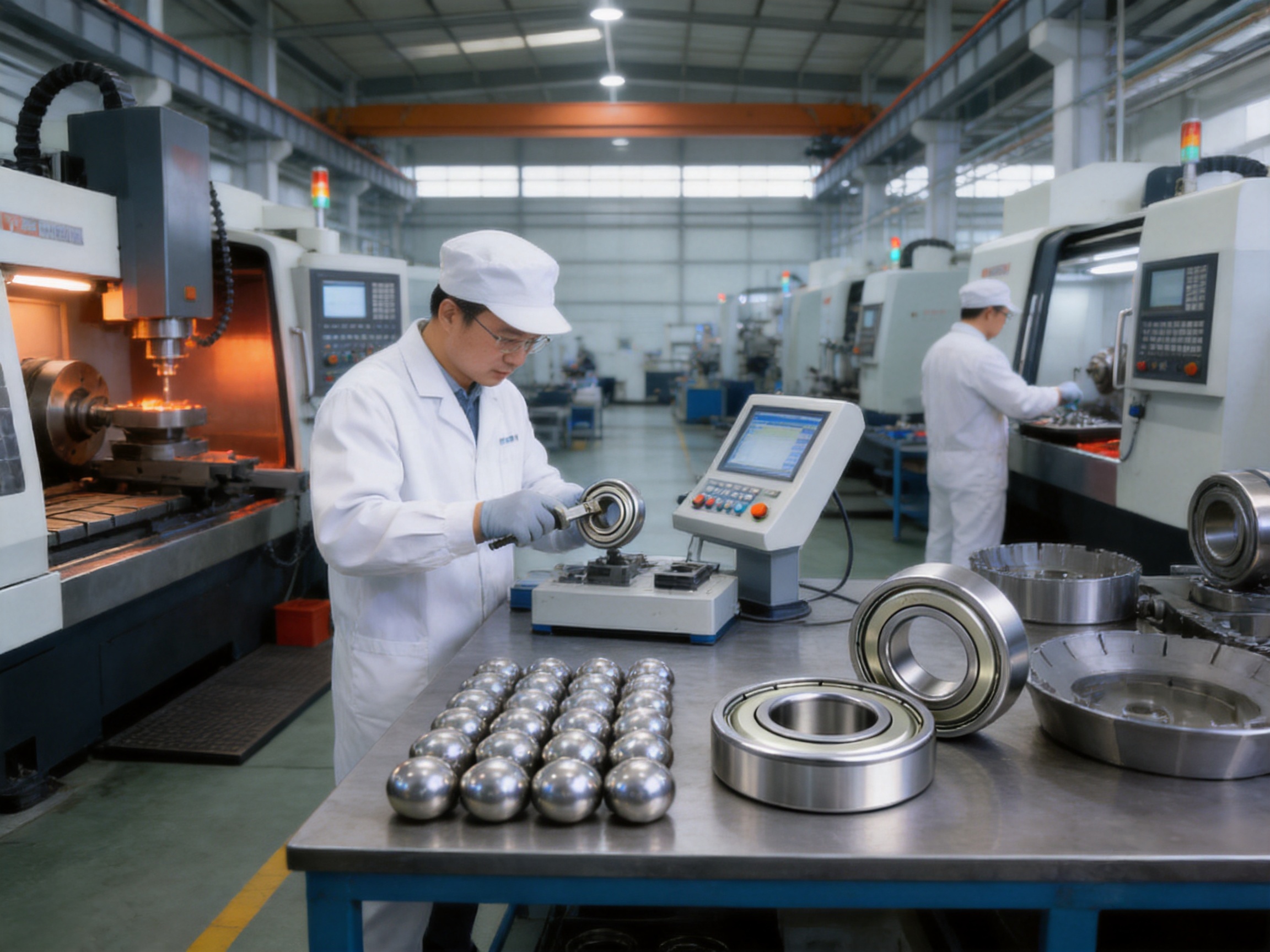

Manufacturing Strengths and Quality Management

Ningbo Zhenhai Hualei Bearing Co., Ltd. was established in 2001 and specializes in deep groove ball bearings. The company produces bearings under the HLGS registered trademark and serves applications including food machinery, household appliances, automotive electromechanical systems, electric tools, mechanical transmission devices, and motors.

The company’s experience provides a foundation for producing standard bearing sizes in repeatable quantities. Repetition and process familiarity are important in bearing manufacturing because performance depends on many linked operations rather than on a single component feature.

The company reports the use of advanced testing equipment and quality systems based on ISO 9001 and ISO/TS 16949 management standards. These management systems support documented procedures, process control, traceability, corrective action, and continuous improvement. For industrial customers, a structured quality system can improve confidence in batch consistency and supplier communication.

Integrated Process Control

A reliable bearing requires control from incoming material through final packaging. Relevant control points include steel inspection, ring forming, turning, heat treatment, grinding, ball selection, cage assembly, shield installation, lubrication, dimensional inspection, noise testing, and final packaging.

Process control helps reduce variation at each stage. For example, a properly ground raceway cannot compensate for contaminated assembly conditions, and a high-quality steel ring cannot deliver stable performance if the shield is incorrectly fitted. The finished bearing depends on the complete manufacturing chain.

Inspection equipment is used to evaluate dimensions, rotation behavior, noise, vibration, and appearance. The exact inspection plan depends on the product and customer requirements, but systematic testing helps identify defects before shipment and supports stable production results.

OEM and ODM Support

Through Ningbo Hotex Mechanical & Electrical Technology Co., Ltd., established in 2016 as an import and export department, the company provides OEM and ODM services for international customers. This capability is valuable for customers who require customized packaging, product identification, documentation, production coordination, or application-specific supply arrangements.

OEM and ODM cooperation may involve more than placing a standard bearing order. Customers may require controlled labeling, private packaging, batch records, inspection reports, delivery schedules, or integration with an existing procurement system. A manufacturer experienced in export and customized service can help coordinate these requirements.

International buyers should provide complete technical information, including bearing designation, quantity, operating speed, loads, temperature, environment, packaging preferences, and inspection requirements. Clear specifications reduce misunderstanding and help the supplier recommend the correct configuration.

Installation Recommendations

Correct installation is essential for achieving the intended performance of the 6205ZZ. Many premature bearing failures result from handling damage, excessive mounting force, contamination, incorrect fits, or misalignment rather than from normal rolling fatigue.

Prepare the Shaft and Housing

Before installation, inspect the shaft and housing for burrs, corrosion, impact marks, dirt, and dimensional damage. The shaft should be clean and properly finished, and the housing bore should be free from particles that could prevent full seating.

Confirm that the shaft diameter and housing bore correspond to the required fit. A fit that is too tight can reduce internal clearance and increase operating temperature. A fit that is too loose can allow ring creep, fretting, and wear. The correct fit depends on which ring rotates relative to the load, the load magnitude, temperature, and machine design.

Use the Correct Mounting Force

When pressing a bearing onto a shaft, apply force only to the ring being fitted. If the inner ring is being mounted on a shaft, the installation force should act through the inner ring. If the outer ring is being installed into a housing, the force should act through the outer ring.

Applying force through the balls can create raceway dents and brinelling. These marks may produce immediate noise and vibration or may initiate premature fatigue. Avoid hammering directly on the bearing and use suitable tools, fixtures, or controlled heating methods where appropriate.

Maintain Cleanliness

Keep the bearing in its original packaging until it is ready for installation. Do not place it on dirty work surfaces or expose it unnecessarily to dust, metal chips, moisture, or chemical vapors. Even small contaminants can affect the raceways and lubricant.

Because the 6205ZZ is shielded and factory lubricated, do not remove the shields during ordinary installation. Do not wash out the original lubricant unless the application has been specifically engineered for relubrication and the correct cleaning and lubrication procedure is known.

Check Rotation After Installation

After installation, rotate the shaft by hand when possible. The movement should be smooth and free from grinding, binding, or unusual resistance. Check for abnormal axial movement, incorrect seating, and contact between the shield and nearby components.

During commissioning, monitor temperature, vibration, and noise. A short observation period can identify installation problems before the machine enters continuous operation. If temperature rises rapidly or the bearing produces unusual sound, stop the equipment and investigate the fit, alignment, lubrication, and surrounding components.

Maintenance and Service Life Considerations

The service life of a 6205ZZ depends on the operating conditions surrounding it. Bearing life is influenced by dynamic load, speed, lubrication, contamination, alignment, mounting, temperature, vibration, and electrical conditions. No bearing can compensate for an overloaded or poorly aligned machine.

Routine maintenance should include visual inspection of the housing and shaft area, listening for abnormal sound, checking temperature trends, and monitoring vibration where suitable instruments are available. A gradual increase in vibration or noise may indicate contamination, raceway fatigue, looseness, imbalance, or a problem elsewhere in the machine.

Do not add incompatible grease through the metal shields. The bearing is supplied with internal lubrication intended for its specified design. If a machine requires external relubrication, the bearing type and maintenance method should be reviewed by a qualified engineer.

Storage conditions also affect bearing quality. Bearings should remain sealed in their original packaging and be stored in a clean, dry, temperature-stable area. Avoid direct exposure to moisture, corrosive chemicals, excessive vibration, and sudden temperature changes. Proper stock rotation helps prevent unnecessary long-term storage.

Common Causes of Premature Failure

How to Select the Correct 6205ZZ Supplier

When comparing suppliers, buyers should review more than price and nominal dimensions. Important factors include material source, manufacturing experience, quality-system structure, inspection capability, packaging, traceability, order flexibility, export support, and technical communication.

A supplier with long-term bearing experience is better positioned to understand the relationship between steel, heat treatment, grinding, assembly, lubrication, and testing. This knowledge can help reduce batch variation and improve response when customers report an application issue.

Buyers should also ask whether the supplier can provide samples, product drawings, technical data, inspection documentation, packaging photographs, and batch information. These materials help the customer verify that the product matches the intended design and procurement requirements.

For OEM programs, consistent labeling and packaging may be as important as the bearing itself. Clear identification can reduce warehouse errors and make maintenance replacement faster. Export-capable suppliers can also support documentation and shipping coordination for international customers.

Questions to Ask Before Ordering

Confirm the bearing number, dimensions, shield arrangement, material, load ratings, quantity, packaging format, and delivery schedule. If the bearing will operate at high speed, elevated temperature, heavy contamination, or unusual loading, provide those details before ordering rather than assuming that every 6205ZZ bearing is suitable.

Ask whether the product is factory lubricated, whether the shields are installed on both sides, and whether the supplier can support a defined inspection or sampling plan. For large orders, establish the requirements for batch consistency, labeling, certificates, and nonconformance handling.

Frequently Asked Questions

What does 6205ZZ mean?

6205 identifies a standard deep groove ball bearing size in the 6200 series. The ZZ suffix indicates that the bearing has double metal shields, one on each side. The basic dimensions are 25 mm bore, 52 mm outside diameter, and 15 mm width.

What loads can the 6205ZZ support?

The listed dynamic load rating is 14,000 N, and the listed static load rating is 7,850 N. These ratings are reference values for engineering calculations. Actual allowable loads depend on speed, duty cycle, lubrication, temperature, alignment, shock, and required service life.

Is the 6205ZZ suitable for electric motors?

Yes. It is suitable for many electric motors that use the 25 × 52 × 15 mm bearing size and operate under appropriate load, speed, temperature, and alignment conditions. Motor designers should also evaluate rotor balance, shaft fits, electrical current protection, and housing tolerances.

Can the 6205ZZ be used in a wet environment?

The double metal shields help limit ordinary dust and retain lubricant, but they are not intended to provide complete protection against water immersion, pressure washing, or continuous liquid exposure. Wet applications may require a contact-sealed, corrosion-resistant, or specially protected bearing arrangement.

Does the ZZ bearing require relubrication?

The 6205ZZ is supplied as a shielded, factory-lubricated bearing and is normally used without routine relubrication. Do not add grease through the shields unless a qualified application engineer has specified a compatible procedure and lubricant.

What is the main advantage of GCr15 bearing steel?

GCr15 is a high-carbon chromium bearing steel known for hardness, wear resistance, contact-fatigue performance, and dimensional stability when correctly processed. Its performance depends on steel quality, heat treatment, grinding, cleanliness, and final inspection.

How does the 6205ZZ compare with a sealed bearing?

The 6205ZZ uses metal shields and generally provides low protective drag, making it useful for many motors, fans, pumps, and enclosed machines. A contact-sealed bearing may offer stronger protection against dust and moisture but can produce more friction and heat. The correct selection depends on the application environment and speed.

How should the bearing be installed?

Clean the shaft and housing, verify dimensions and fits, and apply mounting force only to the ring being fitted. Do not transmit installation force through the balls, and do not strike the bearing directly with a hammer. Rotate the assembly by hand after installation and monitor temperature, vibration, and noise during commissioning.

What industries use this bearing?

The 6205ZZ is used in electric motors, fans, pumps, conveyors, agricultural machinery, gearboxes, household equipment, electric tools, mechanical transmission devices, and general industrial machinery.

Can the product be supplied for OEM or ODM projects?

Yes. Ningbo Zhenhai Hualei Bearing Co., Ltd. provides OEM and ODM services through its export and technical service structure. Customers should provide detailed requirements for bearing configuration, packaging, labeling, inspection, quantity, and delivery.

Conclusion

The 6205ZZ deep groove ball bearing is a dependable standard component for machinery requiring medium radial-load capacity, smooth rotation, low friction, and practical contamination protection. Its 25 × 52 × 15 mm dimensions make it suitable for a broad range of established mechanical designs.

The product’s main strengths come from the combination of GCr15 bearing steel, precision-ground raceways, double metal shields, factory lubrication, standard interchangeability, and controlled manufacturing. These features provide a balanced alternative to both unprotected open bearings and higher-drag sealed configurations when the operating environment is relatively clean and dry.

Its value is further supported by the manufacturer’s experience in deep groove ball bearing production, documented quality-management systems, advanced testing equipment, and OEM and ODM service capabilities. For customers seeking consistent industrial supply, application flexibility, and professional export support, these manufacturing and service capabilities are important considerations.

Correct selection and installation remain essential. Users should evaluate loads, speed, temperature, contamination, shaft and housing fits, alignment, lubrication, and maintenance requirements before approving the bearing for a specific machine. When applied within its intended operating range, the 6205ZZ offers a practical and durable solution for motors, pumps, fans, conveyors, agricultural equipment, gearboxes, and general industrial machinery.

References

1. ISO 15, Rolling Bearings—Radial Bearings—Boundary Dimensions, International Organization for Standardization.

2. ISO 281, Rolling Bearings—Dynamic Load Ratings and Rating Life, International Organization for Standardization.

3. ISO 76, Rolling Bearings—Static Load Ratings, International Organization for Standardization.

4. ISO 9001, Quality Management Systems—Requirements, International Organization for Standardization.

5. ISO/TS 16949, Quality Management Systems for Automotive Production and Relevant Service Parts Organizations.

6. SKF, Rolling Bearings Catalogue and Technical Principles.

7. NSK, Ball and Roller Bearings Technical Reference.

8. Timken, Engineering Manual for Rolling Bearings.

9. FAG, Rolling Bearing Fundamentals and Application Engineering.

10. Manufacturer-provided technical information for the 6205ZZ deep groove ball bearing.
