688ZZ Miniature Deep Groove Ball Bearing: Compact, High-Speed Performance for Precision Applications

The 688ZZ miniature deep groove ball bearing is designed for applications where limited installation space, smooth rotation, low friction, and dependable service are essential. With an 8 mm bore, a 16 mm outside diameter, and a 5 mm width, this compact bearing provides a practical solution for small mechanical systems that cannot accommodate standard-size bearings. Its single-row deep groove configuration supports radial loads and light axial loads while maintaining stable operation in high-speed applications.

Equipped with double metal shields, the 688ZZ helps limit the entry of dust and other common contaminants into the rolling contact area. Its shielded construction, grease lubrication, precision-ground raceways, and GCr15 bearing steel material make it suitable for miniature motors, electric toys, office equipment, precision instruments, small household appliances, and other light-duty mechanisms.

Although miniature bearings are small, their performance requirements are demanding. A bearing must fit accurately, rotate quietly, resist premature wear, and maintain consistent quality from one production batch to another. The 688ZZ addresses these requirements through a compact geometry, a carefully selected material, shield protection, and manufacturing controls supported by Ningbo Zhenhai Hualei Bearing Co., Ltd., an experienced Chinese manufacturer specializing in miniature deep groove ball bearings.

Understanding the 688ZZ Bearing Design

The 688ZZ is a standard miniature single-row deep groove ball bearing. The “688” designation identifies the basic bearing series and dimensions, while “ZZ” indicates that the bearing uses two metal shields. These shields are fitted on both sides of the bearing to help protect the internal raceways and rolling elements from dust, airborne particles, and handling contamination.

The bearing has an 8 mm bore, allowing it to be installed on a small shaft or axle. Its 16 mm outside diameter provides a compact housing envelope, and its 5 mm width makes it suitable for assemblies in which axial space is restricted. This dimensional combination offers a useful balance between installation efficiency and load-carrying capability for miniature equipment.

Unlike a bearing intended for heavy industrial loads, the 688ZZ is optimized for light-duty and precision applications. Its purpose is not to replace larger deep groove ball bearings in demanding machinery, but to provide reliable rotational support in compact systems. In these environments, excessive size can increase weight, consume valuable space, and create unnecessary friction or design complexity.

The deep groove raceway geometry allows the bearing to accommodate primarily radial loads while also handling light axial loads in either direction. This capability is helpful in small mechanisms where the shaft may experience a combination of rotational and limited thrust forces. The bearing can support rotating shafts, rollers, pulleys, gears, fans, and other small components when the operating conditions remain within its intended load and speed range.

Key Technical Specifications

The following table summarizes the principal specifications supplied for the 688ZZ miniature deep groove ball bearing.

Compact Dimensions for Space-Constrained Equipment

One of the most important advantages of the 688ZZ is its compact 8 × 16 × 5 mm size. Modern products increasingly require smaller motors, thinner housings, lighter mechanisms, and more efficient use of internal space. A bearing with a large outside diameter or excessive width can force designers to enlarge the entire assembly. The 688ZZ helps avoid this problem by providing rotational support within a very small envelope.

The 8 mm bore is suitable for small shafts commonly found in miniature motors, small fans, toy mechanisms, office equipment, and compact electromechanical products. The 16 mm outside diameter allows the bearing to be integrated into small housings without consuming space required for wiring, gears, sensors, or structural components. The 5 mm width also assists designers working with thin side plates, narrow brackets, and compact shaft arrangements.

A small bearing can reduce the overall weight of a mechanism. This is beneficial in portable instruments, battery-powered products, handheld devices, and lightweight consumer equipment. Lower bearing mass can also help reduce rotational inertia, allowing a motor or actuator to accelerate and decelerate efficiently. In applications where the bearing is part of a rapidly rotating assembly, compact dimensions can contribute to balanced and responsive operation.

Compared with using an oversized bearing for a light-duty mechanism, the 688ZZ can provide a more proportionate engineering solution. A bearing should be selected according to the actual load, speed, environment, and service requirements. When the operating conditions are appropriate, the miniature design can offer installation flexibility without sacrificing the basic support function required by the equipment.

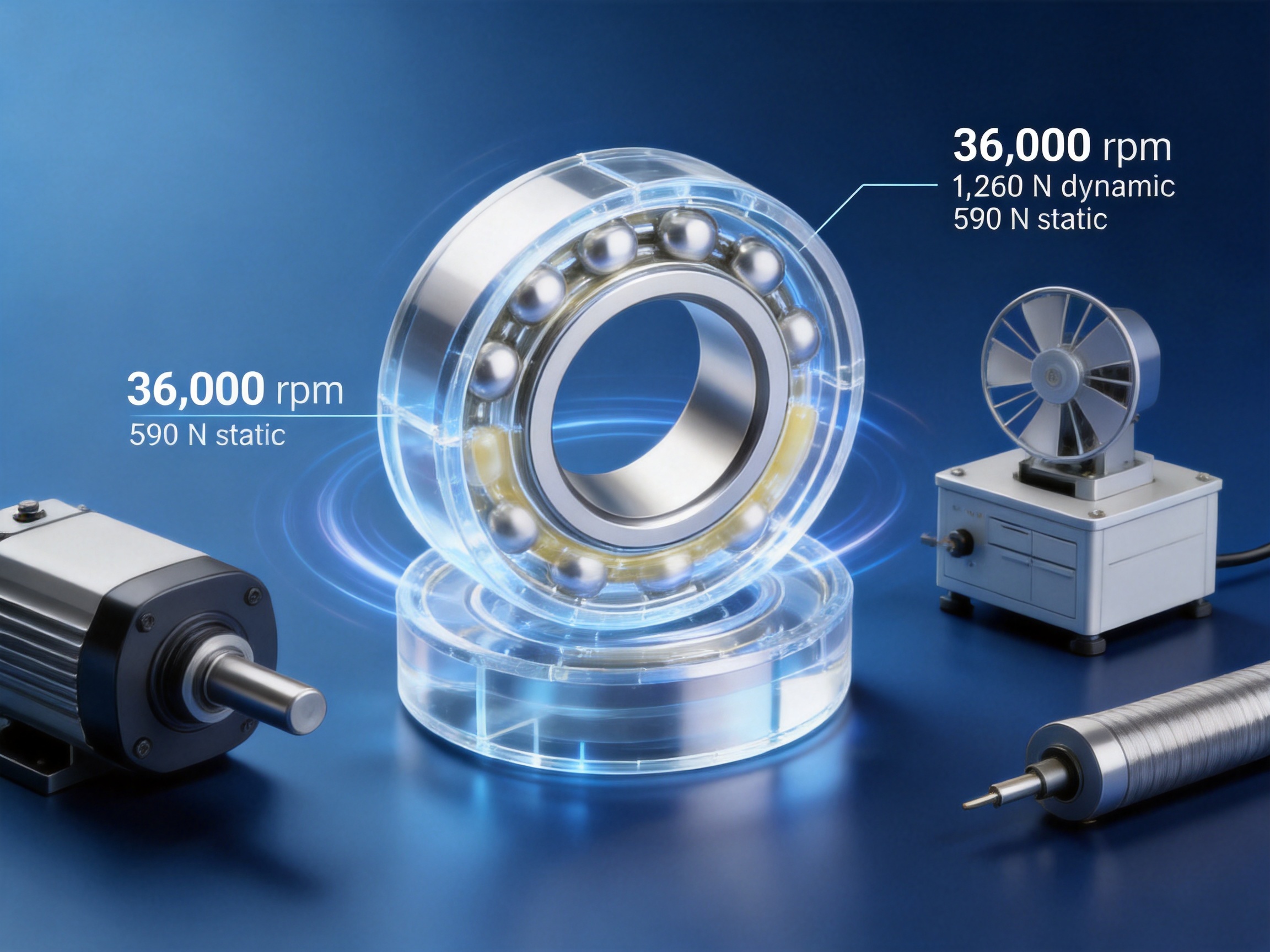

688ZZ Deep Groove Ball Bearing Features a Compact Design Ideal for Light-Duty Applications

High-Speed Capability and Smooth Rotation

The 688ZZ has a stated grease-lubricated limiting speed of 36,000 rpm. This speed capability makes it appropriate for many high-speed miniature applications, especially where the bearing must rotate continuously while maintaining low friction and stable operation. Small motors, miniature fans, precision mechanisms, and compact electrical devices may operate at speeds that require more than simple dimensional compatibility. They also require a bearing with controlled internal geometry and suitable lubrication.

High-speed bearing performance depends on several factors, including radial clearance, raceway finish, ball quality, lubricant condition, shaft fit, housing fit, alignment, temperature, and applied load. The listed limiting speed should therefore be used as a reference rather than an automatic operating target for every application. Designers should evaluate the complete operating system and consider whether the bearing will operate continuously, intermittently, under variable load, or near a heat source.

The 688ZZ’s low-friction design supports efficient rotation. Lower friction can reduce the energy required to turn the shaft and can help limit heat generation during operation. In miniature motors and battery-powered products, this efficiency may support longer operating time and improved system responsiveness. In precision instruments and office equipment, lower friction can help promote smooth movement and reduce unwanted vibration.

Quiet operation is another significant benefit. Noise in a miniature mechanism may be caused by bearing geometry, surface finish, lubricant, contamination, shaft imbalance, poor installation, or surrounding components. A properly manufactured and correctly installed 688ZZ can contribute to a quieter assembly by providing consistent rolling contact and controlled movement. This is especially useful in office equipment, small appliances, precision instruments, and consumer products used close to people.

Double Metal Shields for Practical Protection

The “ZZ” suffix indicates two metal shields, one on each side of the bearing. These shields form a protective barrier around the internal rolling elements and raceways. They are particularly useful in general-purpose applications where the bearing may encounter dust, fibers, light particulate matter, or routine handling contamination.

Metal shields are a practical choice for applications that require low friction and high rotational speed. They do not contact the inner ring in the same way that a contact seal does, so they can help maintain efficient rotation. At the same time, they provide a useful level of protection for the factory-applied grease and internal bearing components.

The shielded configuration is appropriate for indoor equipment, enclosed mechanisms, and many clean or moderately dusty environments. It should not automatically be considered a substitute for a fully sealed bearing in applications exposed to water, heavy liquid contamination, corrosive chemicals, abrasive particles, or direct washdown. Bearing selection should always reflect the actual environment.

For many light-duty products, the 688ZZ offers a useful balance between protection, speed, and friction. A bearing without shielding may be more vulnerable to contamination, while a heavily sealed design may create additional friction. The double metal shield configuration is therefore well suited to compact equipment that needs dependable everyday protection without compromising high-speed performance.

GCr15 Bearing Steel and Material Reliability

The 688ZZ is made from GCr15 bearing steel. This material is widely used for bearing rings and rolling elements because it can provide the hardness, wear resistance, and fatigue performance required in rolling-contact applications when properly processed and heat treated.

Inside a deep groove ball bearing, the balls repeatedly pass through the raceways under load. This creates concentrated contact stress. The bearing material must resist surface damage, rolling contact fatigue, wear, and dimensional change. GCr15 bearing steel is selected for its suitability for this demanding contact environment.

Material selection alone does not determine bearing quality. The quality of the steel, cleanliness, forming process, heat treatment, grinding accuracy, surface finish, assembly control, and inspection standards all influence final performance. For this reason, an experienced manufacturer must manage the material and production stages as one integrated quality process.

For the user, the advantage of GCr15 steel is a strong foundation for consistent bearing performance. It supports the bearing’s ability to maintain smooth raceway contact under appropriate loads and speeds. It also provides a dependable material platform for the precision manufacturing processes required by miniature bearings.

Load-Carrying Performance for Light-Duty Applications

The 688ZZ has a dynamic load rating of 1,260 N and a static load rating of 590 N. These ratings provide important reference points for evaluating whether the bearing is suitable for a specific application.

The dynamic load rating relates to repeated rolling operation. It is used in bearing life calculations when the bearing rotates under a defined load. A higher dynamic rating generally indicates greater ability to withstand repeated rolling contact, although actual service life depends on load magnitude, speed, lubrication, cleanliness, alignment, mounting accuracy, and operating temperature.

The static load rating relates to stationary or slowly moving conditions. It helps engineers evaluate the risk of excessive permanent deformation in the raceways or rolling elements when the bearing is subjected to a high load while not rotating or rotating very slowly. The 590 N rating is useful when assessing installation loads, temporary overloads, vibration during storage, or static support conditions.

These values make the bearing suitable for radial loads and light axial loads in miniature equipment. Examples may include shaft support in small motors, guide rollers, toy transmissions, compact fans, instrument mechanisms, and office equipment. The bearing should not be selected for heavy shock loads, high axial thrust, severe misalignment, or applications outside its miniature light-duty design intent.

Correct load evaluation is essential. The total bearing load may include the weight of the rotating assembly, belt tension, gear forces, fan imbalance, acceleration forces, external vibration, and axial positioning forces. If the bearing is installed in pairs, the load distribution between the bearings should also be considered. A qualified design engineer should evaluate the complete load spectrum rather than relying on a single nominal operating value.

Advantages in Comparison with General Alternatives

The 688ZZ competes in a category where product differences may appear small but can have a significant effect on equipment performance. Its advantages are especially relevant when compared with unsuitable or less appropriately configured alternatives.

Advantage One: Efficient Use of Installation Space

The 8 × 16 × 5 mm dimensions allow the 688ZZ to fit into compact assemblies. A larger bearing may provide unnecessary capacity while increasing housing size, shaft length, weight, and cost. For a light-duty mechanism, selecting a proportionate miniature bearing can simplify the design and preserve valuable internal space.

Advantage Two: A Balanced Shield and Speed Configuration

The double metal shield configuration helps protect the bearing from routine contamination while supporting low-friction rotation. Compared with an open bearing, the 688ZZ offers more practical protection. Compared with a heavily contacting seal, the metal shield arrangement can be more suitable for applications prioritizing high rotational speed and low friction.

Advantage Three: High-Speed Suitability

With a grease-lubricated limiting speed of 36,000 rpm, the 688ZZ is designed for demanding miniature rotational applications. This is an important distinction from basic low-speed bearings that may be dimensionally compatible but not optimized for rapid operation. The stated speed capability supports its use in compact motors, fans, and precision devices when all application conditions are properly controlled.

Advantage Four: Low Friction and Quiet Operation

Miniature products are often sensitive to noise, vibration, and energy consumption. The 688ZZ is specified for low friction and quiet operation, characteristics that can improve the user experience and support efficient equipment performance. These advantages are valuable in office products, household appliances, instruments, and consumer devices.

Advantage Five: Reliable Material Platform

GCr15 bearing steel provides a proven material base for bearing rings and rolling elements. When combined with appropriate heat treatment, precision grinding, and inspection, it supports stable rolling contact and wear resistance. This material choice helps the bearing perform consistently within its intended operating range.

Advantage Six: Versatile General-Purpose Use

The deep groove configuration allows the 688ZZ to accommodate radial loads and light axial loads in either direction. This versatility reduces the need for highly specialized bearing arrangements in many small mechanisms. It can support a broad range of applications while maintaining a simple and familiar installation format.

Manufacturing Experience and Quality Strengths

Ningbo Zhenhai Hualei Bearing Co., Ltd. was established in 2001 and specializes in miniature deep groove ball bearings. More than two decades of manufacturing experience provide a foundation for understanding the dimensional, material, assembly, and quality requirements associated with small rolling bearings.

Miniature bearings require careful process control because small dimensional variations can influence fit, noise, friction, and service life. The company’s specialization in miniature deep groove ball bearings allows its manufacturing and inspection activities to remain focused on the requirements of compact bearing products rather than treating them as a minor extension of large-bearing production.

The company states that its products are strictly tested with advanced equipment. Testing and inspection are important throughout the manufacturing chain. Incoming material must be evaluated, machining and grinding operations must be controlled, shields must be fitted correctly, lubrication must be applied consistently, and finished bearings must be checked before shipment.

For a product such as the 688ZZ, manufacturing accuracy may involve bore diameter, outside diameter, width, roundness, raceway geometry, radial clearance, surface finish, rotational smoothness, noise, vibration, and shield installation. Each of these factors can influence how easily the bearing fits into the customer’s assembly and how reliably it performs after installation.

The company follows ISO 9001 and ISO/TS 16949 management systems. These management frameworks support structured quality procedures, documented processes, traceability, corrective action, and continuous improvement. For customers purchasing miniature bearings in production quantities, a systematic quality environment can be as important as the nominal bearing specification.

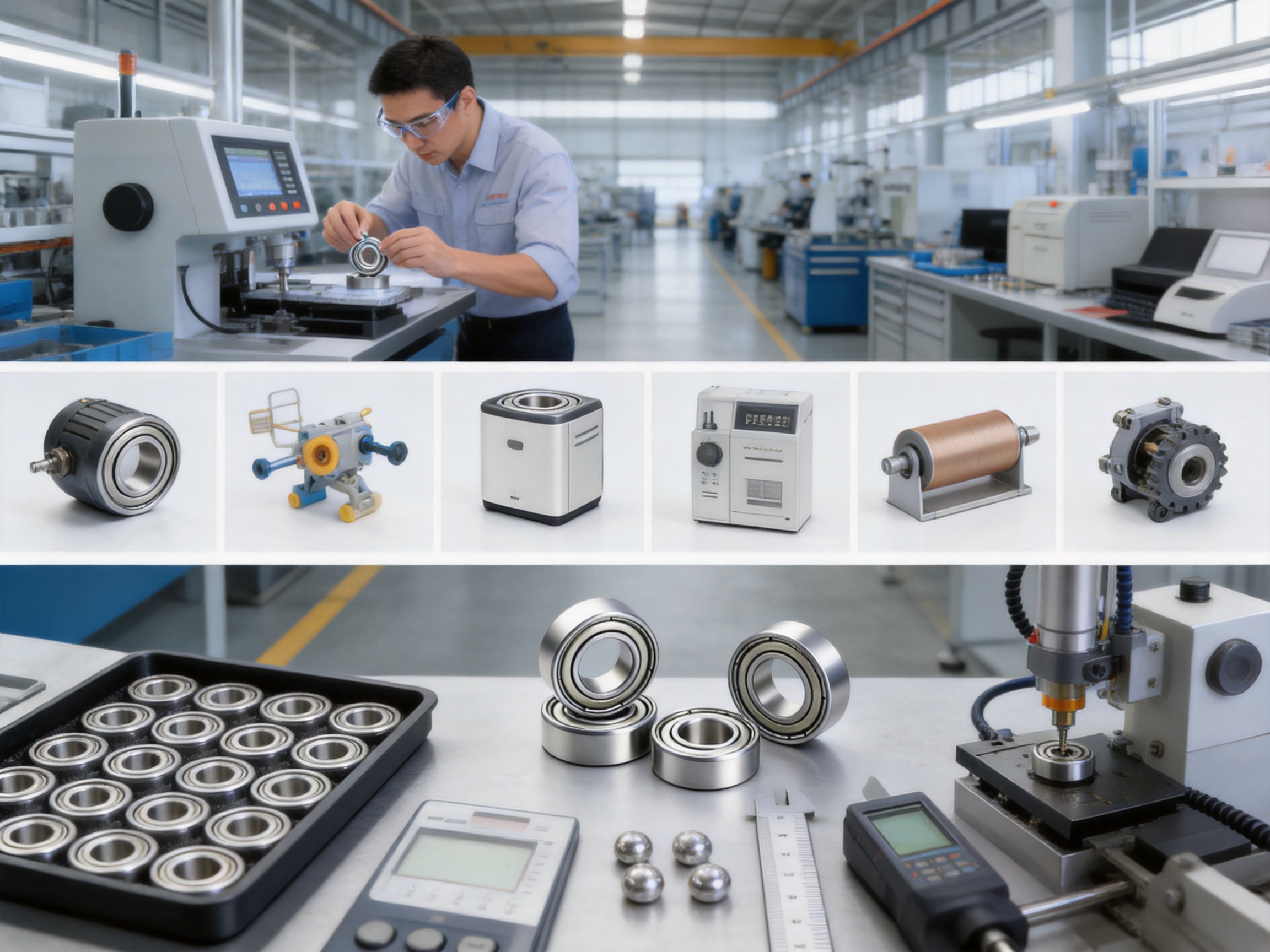

Process Control from Material to Finished Bearing

A miniature bearing is the result of several connected manufacturing stages. The first stage is material preparation. Suitable bearing steel must be selected and managed to provide the required mechanical properties. Material consistency is essential because variations in steel quality can affect heat treatment response, surface durability, and rolling contact fatigue performance.

The next stages involve the production of bearing rings and rolling elements. The rings must be formed and machined to the correct geometry, while the balls must meet requirements for size consistency, roundness, surface quality, and hardness. Because the 688ZZ is a small bearing, the production system must maintain accuracy at a compact scale where inspection and handling require particular attention.

Heat treatment gives the bearing steel the hardness and structural properties needed for rolling contact. A properly controlled heat treatment process supports wear resistance and dimensional stability. If heat treatment is inconsistent, the bearing may experience differences in hardness, distortion, or service performance. Manufacturing discipline at this stage is therefore essential.

Precision grinding and finishing operations refine the raceways and ring surfaces. The raceways must provide smooth, accurate contact with the balls. Surface finish affects friction, noise, lubrication behavior, and rolling fatigue. Controlled grinding also helps maintain the dimensional tolerances required for proper shaft and housing fits.

After the major components are manufactured and inspected, the bearing is assembled. The balls, rings, cage, shields, and lubricant must be combined correctly. The double metal shields must be securely positioned without creating excessive interference or damage. Grease must be applied in a controlled quantity so that the bearing receives adequate lubrication without unnecessary churning at high speed.

Finished bearing inspection helps confirm that the assembled product meets defined requirements. Depending on the production and customer requirements, inspection may include dimensional measurement, rotational testing, noise evaluation, vibration checks, visual examination, and packaging verification. The stated use of advanced testing equipment supports the company’s objective of supplying consistent miniature bearings for industrial and commercial customers.

OEM and ODM Support for Equipment Manufacturers

In addition to standard bearing supply, Ningbo Zhenhai Hualei Bearing Co., Ltd. provides OEM and ODM services through its import and export department, Ningbo Hotex Mechanical & Electrical Technology Co., Ltd., established in 2016. This capability is useful for equipment manufacturers that need bearing products aligned with specific design, packaging, labeling, or supply-chain requirements.

OEM cooperation may be appropriate when a customer requires a standard 688ZZ bearing supplied under a private label or with defined packaging and documentation. ODM cooperation may be relevant when the customer needs support in selecting or adapting a miniature bearing solution for a particular device. These services can help integrate the bearing into a broader product-development and procurement program.

For engineering customers, supplier communication is important. Information such as shaft size, housing design, operating speed, load direction, temperature, lubrication expectations, contamination level, and installation method should be reviewed before a bearing is approved. A manufacturer experienced in miniature bearings can help clarify whether the 688ZZ is an appropriate choice or whether another configuration would better match the application.

For purchasing departments, OEM and ODM support can simplify the process of coordinating product specifications, order quantities, packaging, and delivery requirements. A supplier that can provide both standard products and customized cooperation may reduce the need to manage multiple sources for related miniature bearing requirements.

Application Areas

Miniature Motors

The 688ZZ is well suited to small electric motors that require compact shaft support and smooth rotation. The 8 mm bore can accommodate a small motor shaft, while the shielded construction helps protect the internal bearing from ordinary dust. Its high-speed capability is relevant to motors used in compact equipment, toys, office products, and small appliances.

Electric Toys

Electric toys often use small motors, gears, wheels, fans, and rotating shafts. A bearing that is too large can increase weight and reduce available design space. The 688ZZ provides a compact rotational support option for light-duty toy mechanisms. Its quiet operation can also contribute to a more pleasant product experience.

Precision Instruments

Precision instruments may require smooth, low-friction movement and controlled noise. The 688ZZ can support small shafts and rotating components in instruments where compact size is important. Designers should still evaluate environmental cleanliness, temperature, vibration, and required positional accuracy before selecting the bearing.

Office Equipment

Printers, scanners, document-handling devices, compact fans, and other office equipment can contain numerous small rotating parts. In these products, bearing noise and friction may affect user perception. The 688ZZ’s shielded design, compact dimensions, and smooth operation make it a practical option for suitable light-duty mechanisms.

Small Household Appliances

Compact household appliances may include small motors, rollers, blowers, and transmission components. The bearing can be used where the load, temperature, speed, and contamination conditions fall within its design range. Its compact size helps appliance manufacturers manage restricted internal space and maintain lightweight product construction.

Mechanical Transmission Devices

Small gears, pulleys, rollers, and shafts may require bearing support in mechanical transmission systems. The deep groove design can handle radial forces and light axial forces, making it versatile for many small transmission arrangements. Proper alignment and correct shaft and housing fits are essential to achieving stable performance.

Installation and Application Recommendations

Correct installation is essential for realizing the advantages of the 688ZZ. Before installation, the bearing, shaft, housing, and surrounding components should be inspected for burrs, dirt, corrosion, impact marks, and dimensional defects. Contamination introduced during assembly can affect noise, friction, and service life even when the bearing itself is manufactured correctly.

Installation force should be applied to the ring that is being fitted. If the bearing is being pressed onto a shaft, force should be applied to the inner ring. If it is being installed into a housing, force should be applied to the outer ring. Applying force through the balls can damage the raceways and create early bearing failure.

The shaft and housing fits should be selected according to the rotating ring, load direction, temperature, and expected operating conditions. An excessively tight fit may reduce internal clearance and increase friction, while an excessively loose fit may allow ring creep or vibration. The correct fit depends on the complete design rather than on bearing size alone.

Alignment should be checked carefully. Deep groove ball bearings can accommodate only limited misalignment. If the shaft and housing are not coaxial, the bearing may experience uneven load distribution, increased noise, higher friction, and reduced service life. Small bearings can be particularly sensitive to improper mounting because their internal components and contact areas are compact.

The 688ZZ is supplied with grease lubrication suitable for its intended configuration. Users should avoid adding incompatible lubricants or excessive grease without technical justification. Excessive grease can increase friction and temperature, especially at high speed. If relubrication or a different lubricant is required, compatibility with the original grease, shield arrangement, speed, and temperature must be evaluated.

Storage conditions also influence bearing quality. Bearings should remain in their original packaging until needed and should be stored in a clean, dry environment away from corrosive materials, vibration, and extreme temperature changes. Proper handling prevents damage to the shields and reduces the risk of contamination before installation.

How to Select the 688ZZ for a New Design

When considering the 688ZZ for a new design, engineers should begin with the available shaft and housing space. The 8 mm bore, 16 mm outside diameter, and 5 mm width must match the mechanical layout. If the shaft is larger or the housing space is different, another bearing designation may be required.

The next step is to calculate the expected radial and axial loads. The 688ZZ is intended primarily for radial loading with light axial loading. If the application includes substantial thrust, impact, belt tension, gear forces, or vibration, the equivalent bearing load should be calculated and compared with the bearing ratings.

Operating speed should then be reviewed. The 36,000 rpm grease-lubricated limiting speed provides a useful reference for high-speed selection. However, continuous operation near the limiting speed may require more careful evaluation of heat generation, lubricant behavior, balance, clearance, shaft accuracy, and housing ventilation.

Environmental conditions are equally important. The double metal shields provide practical protection against ordinary dust and particles, but applications exposed to water, chemical vapors, abrasive dust, or heavy contamination may need a different sealing arrangement or additional external protection.

Finally, designers should consider noise, vibration, expected service life, mounting method, temperature, duty cycle, and procurement requirements. When these factors are reviewed together, the 688ZZ can be evaluated as part of a complete bearing system rather than as an isolated dimensional component.

Quality and Supply Advantages for Business Customers

For industrial customers, bearing quality must be supported by dependable production and communication. Ningbo Zhenhai Hualei Bearing Co., Ltd. has focused on miniature deep groove ball bearings since 2001 and supplies products for food machinery, household appliances, automotive electromechanical systems, electric tools, mechanical transmission devices, and motors.

This application range indicates experience with different equipment requirements. Although the 688ZZ is a miniature light-duty bearing, the same fundamental concerns apply across many industries: dimensional consistency, reliable materials, controlled assembly, effective inspection, secure packaging, and responsive technical communication.

The company’s stated ISO 9001 and ISO/TS 16949 management systems provide a structured framework for quality management. Such systems can support repeatable production, documented procedures, customer feedback handling, and continuous improvement. These strengths are valuable to customers that need stable quality over recurring orders rather than a one-time supply.

International customers may also benefit from the company’s dedicated import and export department and OEM and ODM capabilities. A supplier with export coordination can help manage product documentation, packaging expectations, order communication, and overseas cooperation. For manufacturers building global supply chains, this can support a more organized purchasing relationship.

The company’s philosophy of sincere trust and efficient service emphasizes the importance of long-term cooperation. In bearing procurement, trust is developed through consistent product quality, accurate technical information, reliable delivery communication, and prompt handling of questions or corrective actions. These service qualities complement the mechanical performance of the 688ZZ.

Frequently Asked Questions

What does 688ZZ mean?

688ZZ identifies a miniature single-row deep groove ball bearing with an 8 mm bore, a 16 mm outside diameter, a 5 mm width, and double metal shields. The ZZ suffix refers to the two metal shields fitted on both sides.

What are the dimensions of the 688ZZ?

The standard dimensions are 8 × 16 × 5 mm. The bore diameter is 8 mm, the outside diameter is 16 mm, and the bearing width is 5 mm.

What material is used for this bearing?

The 688ZZ is made from GCr15 bearing steel. This material is commonly used for bearing rings and rolling elements because it can provide suitable hardness, wear resistance, and rolling-contact performance when correctly processed.

What loads can the 688ZZ support?

The bearing is designed primarily for radial loads and can also handle light axial loads in either direction. Its stated dynamic load rating is 1,260 N, and its static load rating is 590 N. Actual application suitability depends on load direction, speed, duty cycle, alignment, and operating environment.

Is the 688ZZ suitable for high-speed operation?

Yes. Its stated grease-lubricated limiting speed is 36,000 rpm. The actual operating speed should be determined after considering temperature, lubrication, shaft and housing fits, alignment, load, vibration, and continuous or intermittent duty.

Do the metal shields make the bearing waterproof?

No. The double metal shields help protect against dust and routine particulate contamination, but they should not be treated as waterproof seals. Applications exposed to water, washdown, heavy contamination, or corrosive liquids may require a different protection system.

What applications commonly use the 688ZZ?

Typical applications include miniature motors, electric toys, precision instruments, office equipment, small household appliances, compact fans, and light-duty mechanical transmission devices.

Can the 688ZZ handle axial loads?

As a deep groove ball bearing, it can accommodate light axial loads in either direction in addition to radial loads. It is not intended for substantial thrust loads unless the application has been specifically evaluated and approved for that condition.

How should the bearing be installed?

Installation force should be applied to the fitted ring. Press the inner ring when mounting onto a shaft and press the outer ring when mounting into a housing. Keep the bearing clean, avoid impact through the rolling elements, and verify shaft, housing, and alignment conditions.

Does the bearing require additional grease?

The bearing is grease lubricated. Additional grease is not normally required during standard installation. Adding excessive or incompatible lubricant can increase friction and temperature, particularly at high speed. Any relubrication program should be based on technical evaluation.

What manufacturing strengths support this product?

Ningbo Zhenhai Hualei Bearing Co., Ltd. has specialized in miniature deep groove ball bearings since 2001. The company uses advanced testing equipment, follows ISO 9001 and ISO/TS 16949 management systems, and provides OEM and ODM services through its import and export department.

Can the bearing be supplied for OEM projects?

Yes. The company provides OEM and ODM services. Customers should communicate their dimensional requirements, operating conditions, packaging needs, labeling expectations, order quantities, and quality documentation requirements during the project discussion.

Conclusion

The 688ZZ miniature deep groove ball bearing combines compact dimensions, double metal shielding, GCr15 bearing steel, low friction, quiet operation, and high-speed capability in a practical light-duty bearing design. Its 8 × 16 × 5 mm size makes it suitable for space-constrained assemblies, while its deep groove configuration supports radial loads and light axial loads for a broad range of miniature equipment.

With a grease-lubricated limiting speed of 36,000 rpm, a dynamic load rating of 1,260 N, and a static load rating of 590 N, the bearing offers a useful performance profile for miniature motors, electric toys, precision instruments, office equipment, small appliances, and compact mechanical transmission systems.

The product’s value is supported by the manufacturing experience of Ningbo Zhenhai Hualei Bearing Co., Ltd., which has specialized in miniature deep groove ball bearings since 2001. Advanced testing equipment, structured quality management under ISO 9001 and ISO/TS 16949 systems, and OEM and ODM capabilities provide additional support for customers seeking consistent supply and professional cooperation.

When properly selected, installed, lubricated, and protected from unsuitable environmental conditions, the 688ZZ can provide dependable rotational support in compact products. Its combination of size efficiency, speed capability, practical shielding, and manufacturing support makes it a strong choice for light-duty miniature bearing applications.
